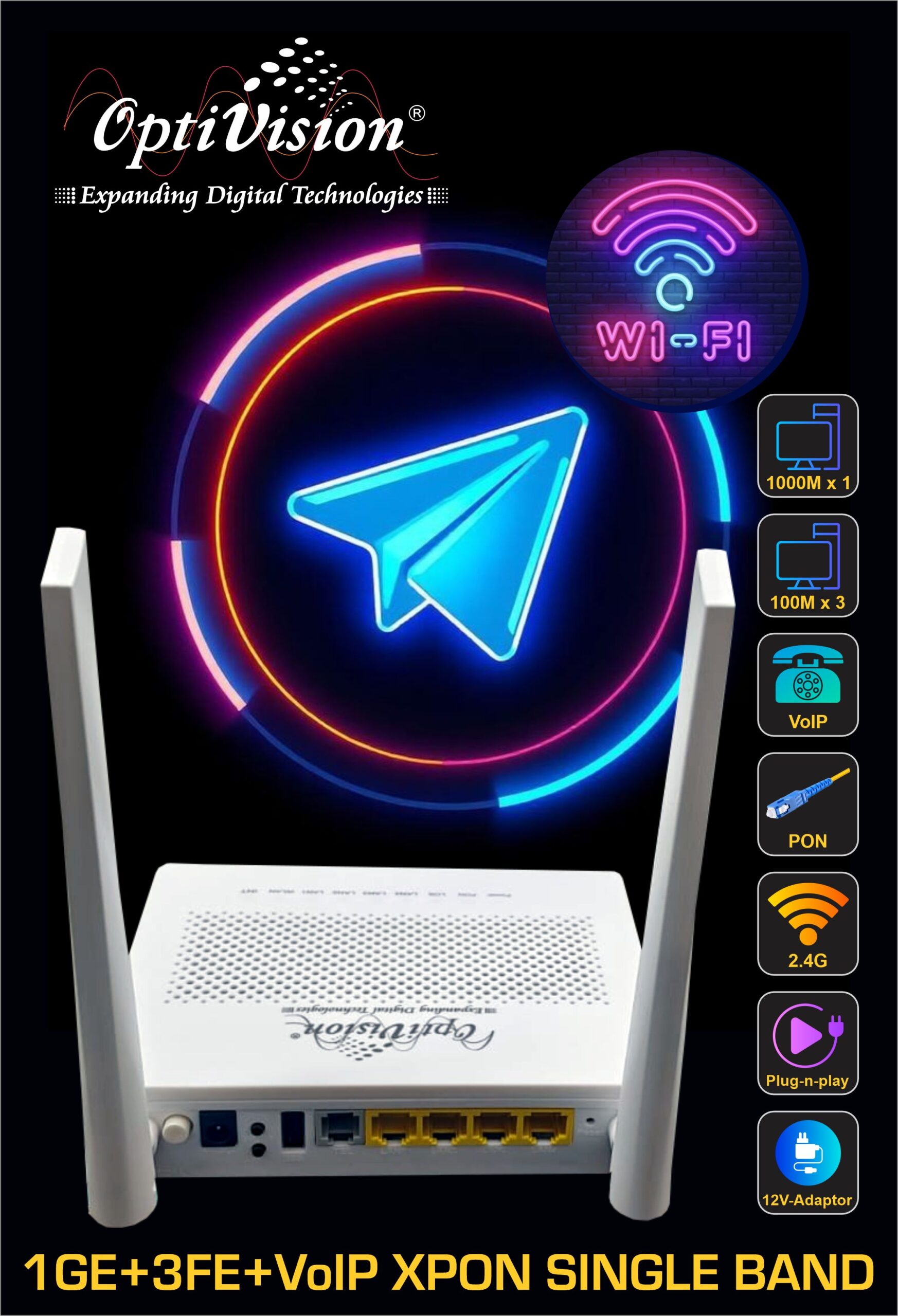

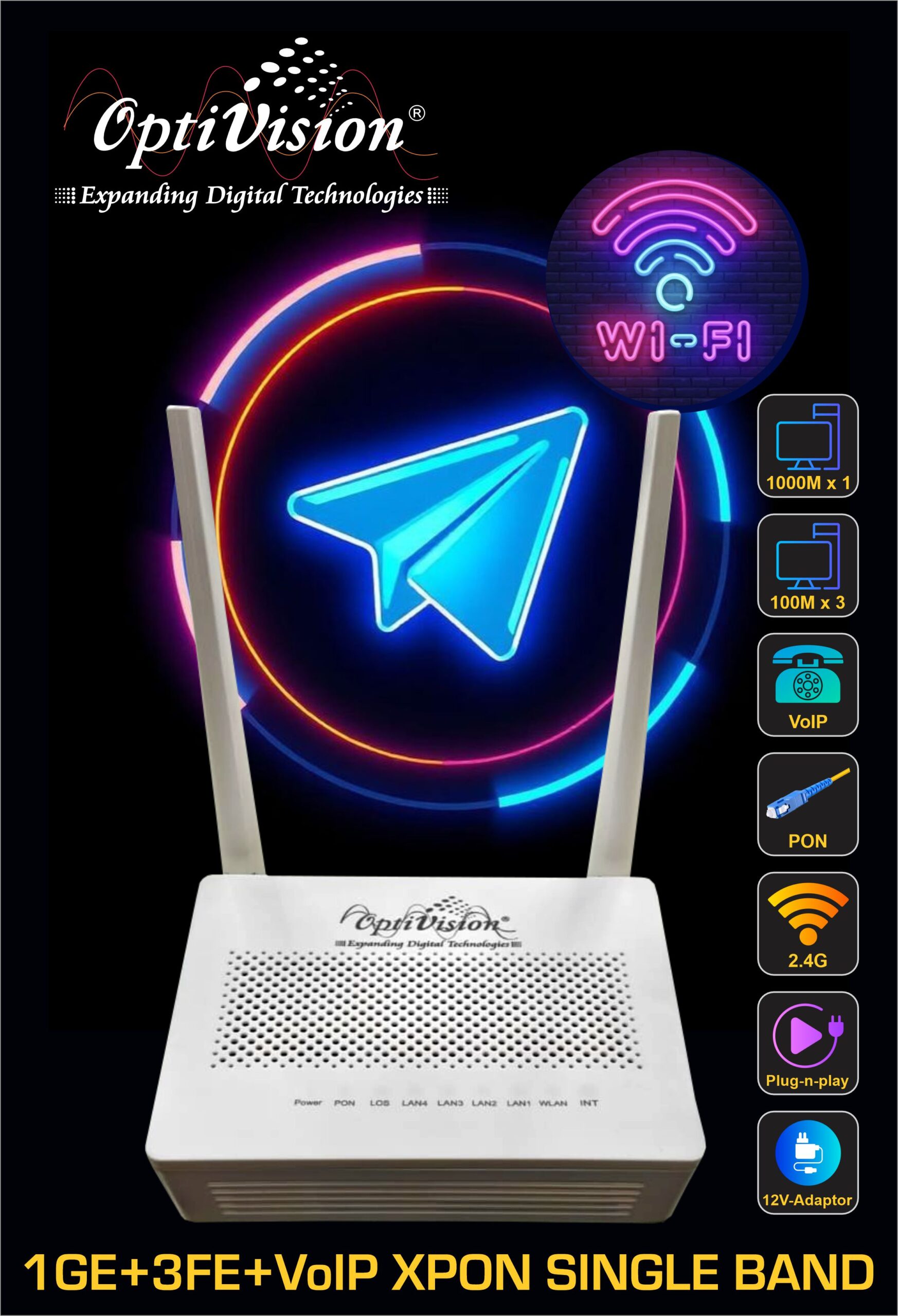

SINGLE BAND XPON ONT : 1GE+3FE+VOIP
₹900.00
OPTIVISION : 1GE + 3FE + 1VoIP XPON Single-Band ONT – Technical Details General Description
OPTIVISIONÂ 1GE + 3FE + 1VoIP XPON Single-Band ONT is a cost-effective optical network terminal designed for FTTH/FTTB access networks. It supports both GPON and EPON standards through XPON auto-adaptation, providing high-speed data services, stable VoIP communication, and wireless connectivity over a single-band Wi-Fi interface. The device is ideal for residential subscribers and small offices.
OPTIVISION : 1GE + 3FE + 1VoIP XPON Single-Band ONT – Technical Details General Description
OPTIVISIONÂ 1GE + 3FE + 1VoIP XPON Single-Band ONT is a cost-effective optical network terminal designed for FTTH/FTTB access networks. It supports both GPON and EPON standards through XPON auto-adaptation, providing high-speed data services, stable VoIP communication, and wireless connectivity over a single-band Wi-Fi interface. The device is ideal for residential subscribers and small offices.
Optical Interface
- PON Type:Â XPON (Auto-adaptive GPON / EPON)
- Standards Compliance:
- ITU-T G.984 (GPON)
- IEEE 802.3ah / 802.3av (EPON)
- Optical Connector:Â SC/APC or SC/UPC
- Wavelengths:
- Downstream: 1490 nm
- Upstream: 1310 nm
- Maximum Transmission Distance:Â Up to 20 km
- Optical Power Budget:Â Class B+ / C+ (optional)

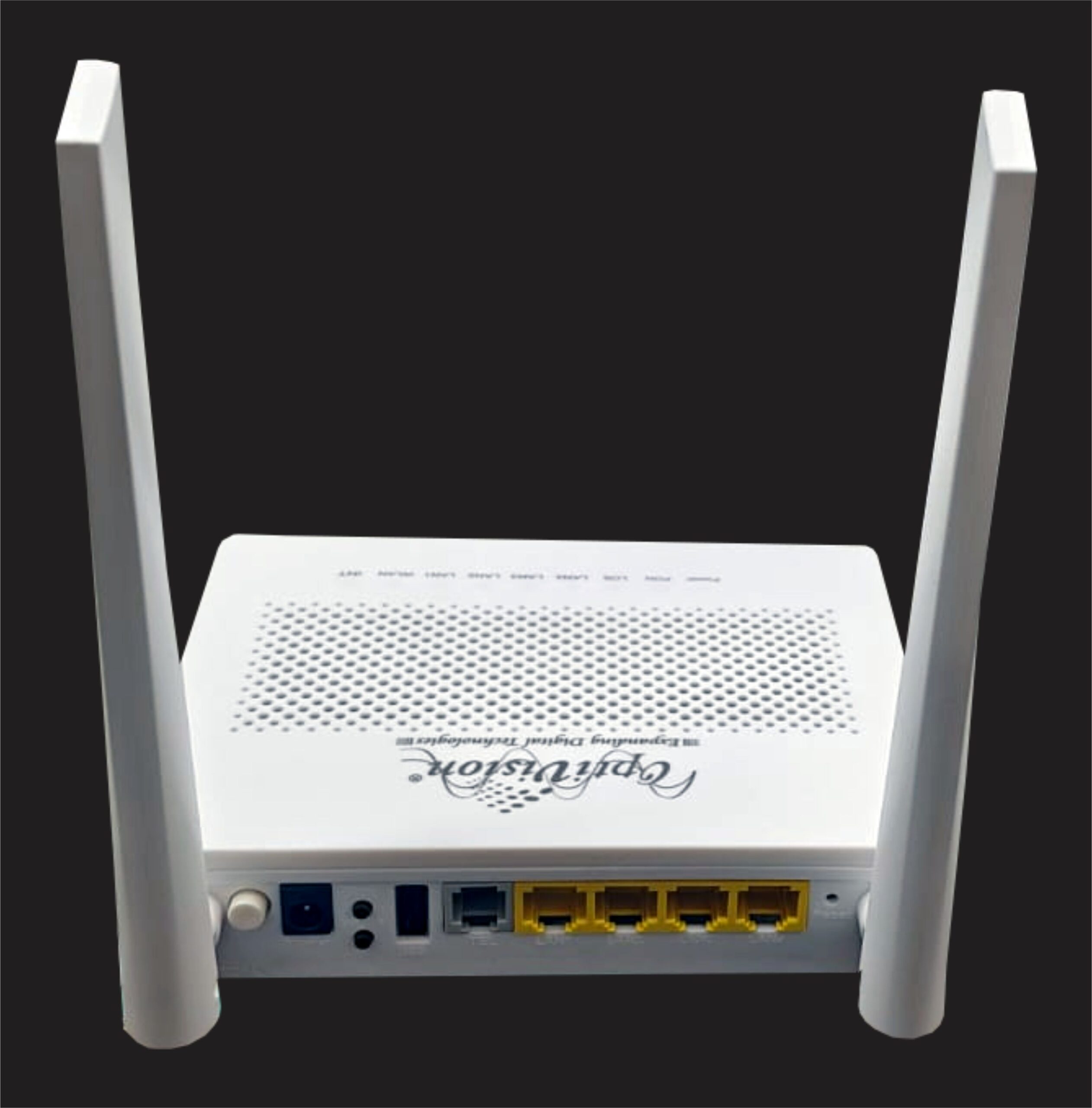

Network Interfaces
- Ethernet Ports:
- 1 × 10/100/1000 Mbps RJ-45 (GE)
- 3 × 10/100 Mbps RJ-45 (FE)
- Auto-negotiation and Auto MDI/MDIX supported
- Voice Port:
- 1 × RJ-11 (VoIP)
VoIP Features
- Protocol:Â SIP (RFC 3261)
- Voice Codec Support: G.711 (A-law / µ-law), G.729, G.722
- Voice Functions:
- Call waiting, call forwarding, call transfer
- Caller ID, voicemail
- Echo cancellation, jitter buffer, silence suppression
Wireless Interface
- Wi-Fi Standard:Â IEEE 802.11 b/g/n
- Frequency Band:Â 2.4 GHz (Single Band)
- Maximum Wireless Rate:Â Up to 300 Mbps
- MIMO: 2 × 2
- Wireless Security:
- WPA / WPA2 / WPA3
- WPS support
Routing & Network Features
- Router / Bridge modes
- NAT / NAPT
- PPPoE / DHCP / Static IP
- VLAN tagging (IEEE 802.1Q)
- QoS with traffic prioritization
- IPv4 / IPv6 dual stack
- IGMP Snooping / Proxy for IPTV services
Management & Maintenance
- Remote Management:Â TR-069
- Local Management: Web GUI, CLI (Telnet / SSH – operator controlled)
- Monitoring:
- Optical power level detection
- Ethernet and VoIP port status
- Firmware Upgrade:Â Remote and local upgrade supported
Security Features
- Built-in firewall
- MAC / IP / URL filtering
- DoS attack prevention
- User access control and authentication
Power & Environment
- Power Supply:Â External DC adapter
- Input Voltage:Â 12V DC
- Power Consumption: ≤ 10 W
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -40°C to +70°C
- Operating Humidity: 5% – 95% (non-condensing)
Physical Characteristics
- Desktop or wall-mountable housing

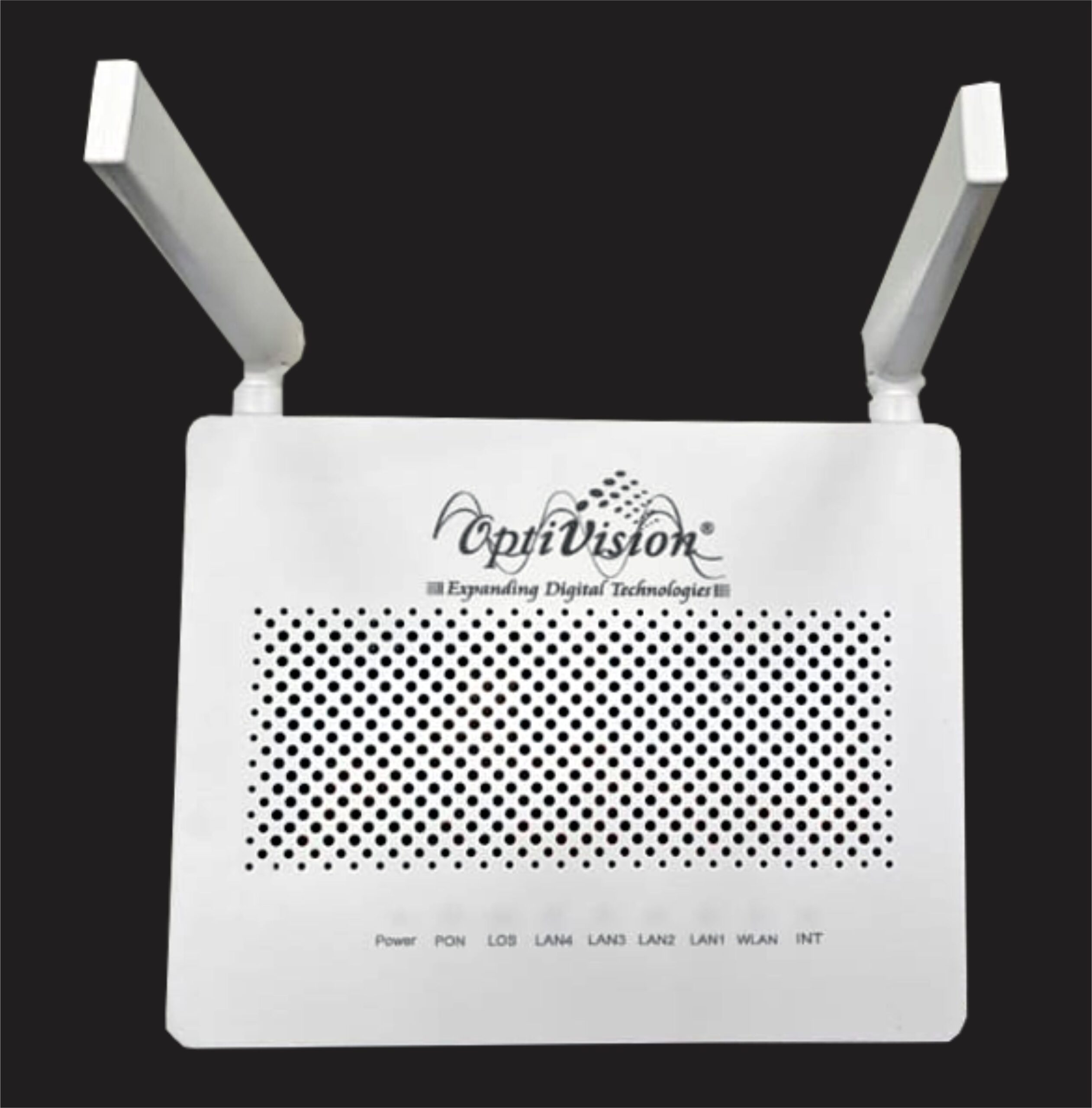

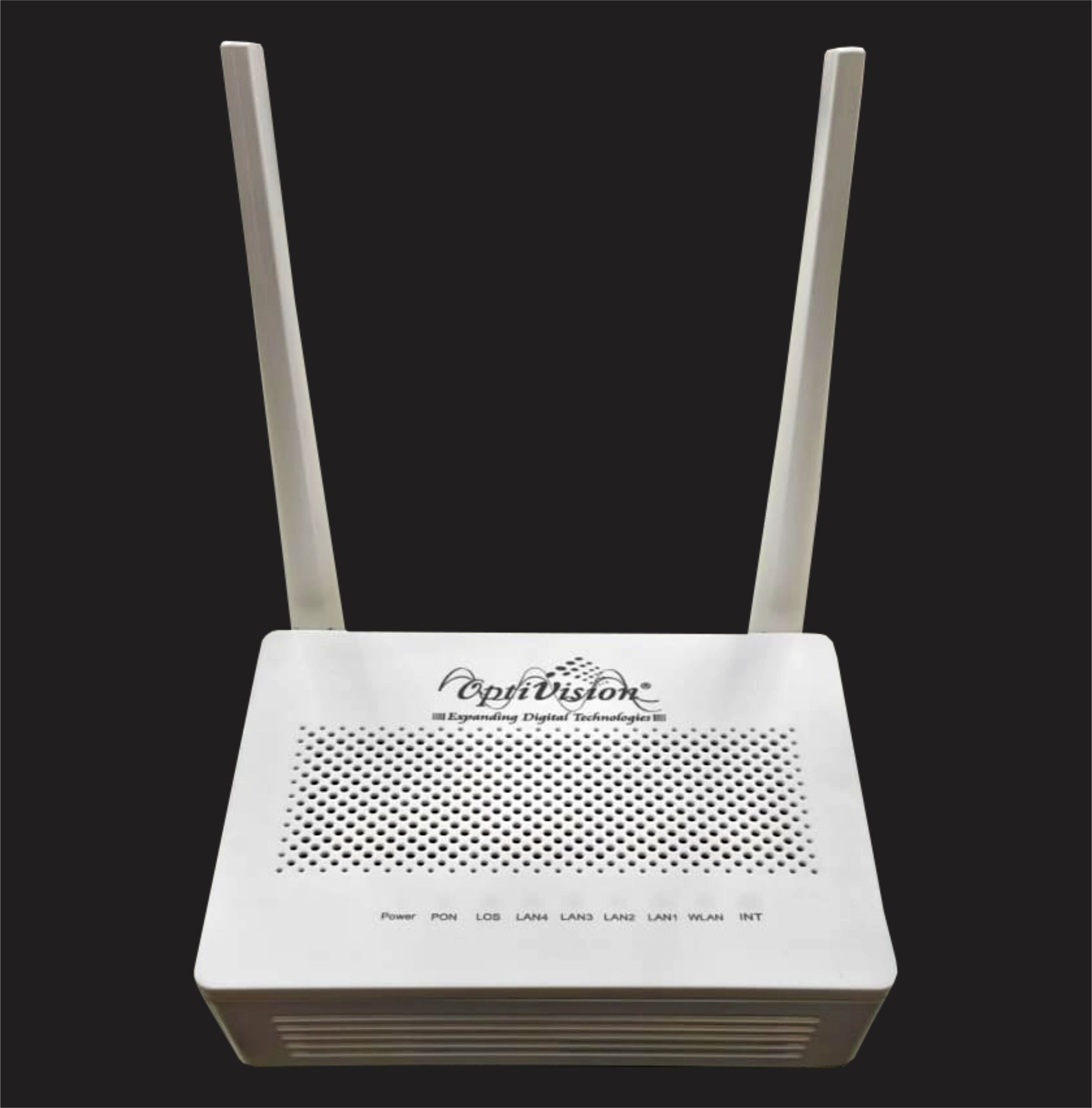

- LED indicators: Power, PON, LOS, LAN, Wi-Fi, VoIP
