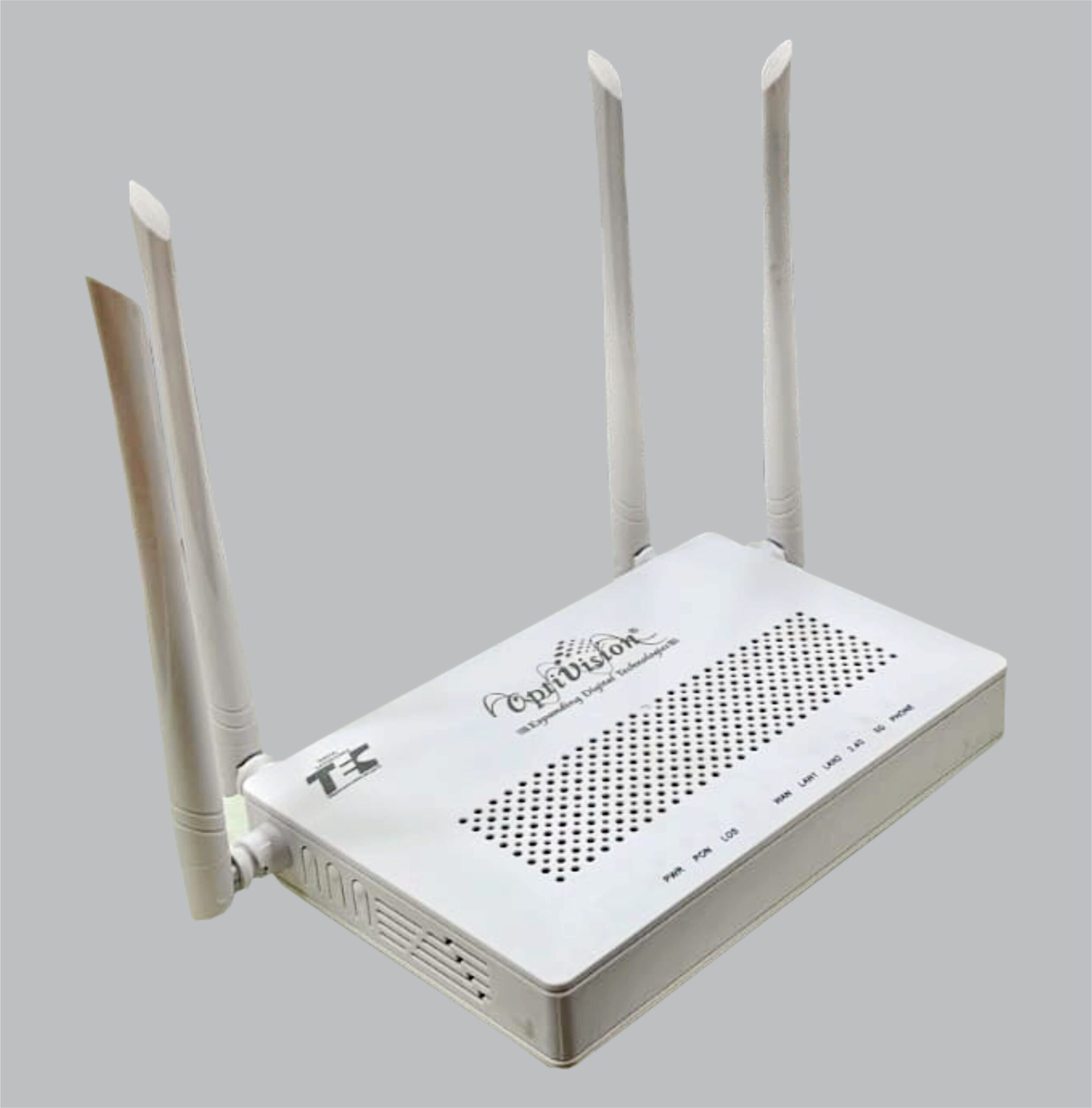

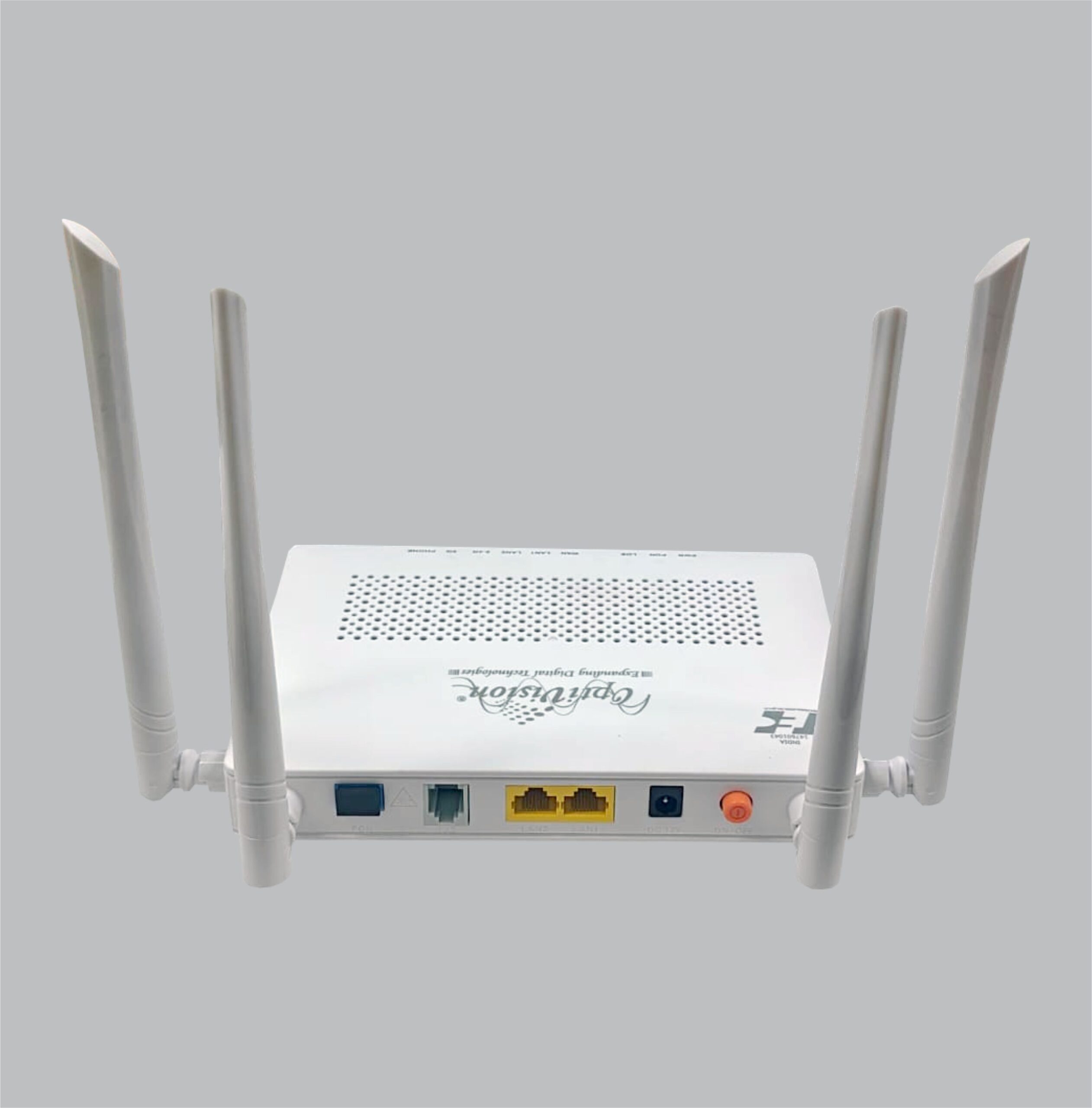

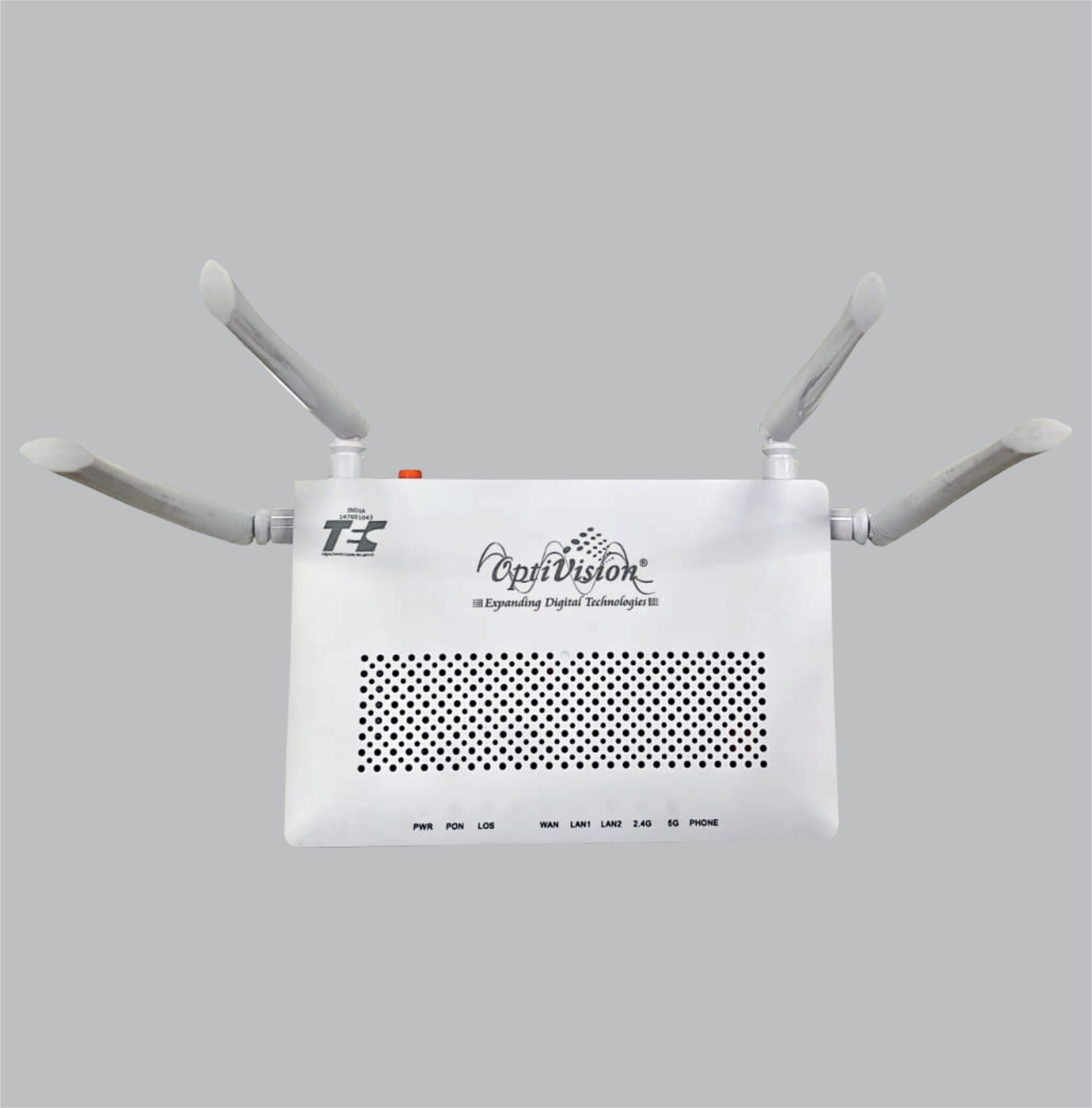

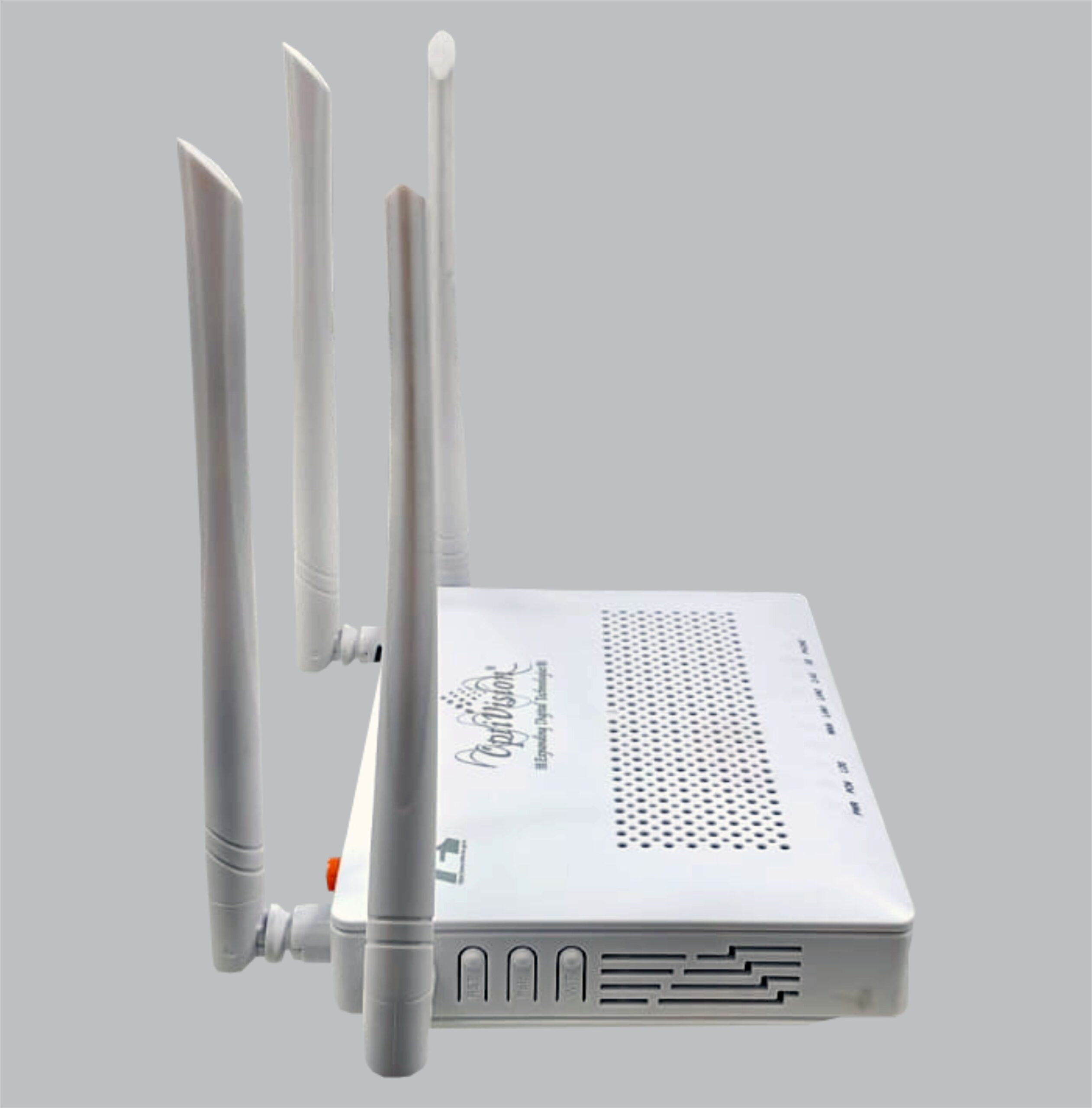

V-SOL Dual Band ONT : 2GE+1VoIP XPON 4 ANTENA

General Description:- OPTIVISION – V-SOL Dual Band is a home gateway ONU/ONT designed for FTTH broadband access networks, supporting XPON dual-mode auto-adaptation (GPON+EPON) and providing data, voice (VoIP)PON (Optical) Interface

• 1 × XPON port: Auto-detects and supports both EPON (PX20+/PX20++) and GPON (Class B+) OLTs
• Optical connector: SC/UPC, single-mode fiber
• TX optical power: 0 to +4 dBm
• RX sensitivity: approx. ≤ –27 to –28 dBm
• Optical reach: up to 20 km
• Wavelength: TX 1310 nm / RX 1490 nm

Ethernet (LAN) Interfaces

• 2 × Gigabit Ethernet (10/100/1000 Mb/s) RJ45 ports for wired LAN or WAN connections

Voice (POTS) Port

• 1 × RJ11 POTS connector for telephony (VoIP) services, supporting SIP protocol and standard voice codecs (e.g., G.711, G.722, G.729) with features like echo cancellation and fax support.

Wi-Fi (Wireless)

• Dual-band Wi-Fi 5 (802.11b/g/n/ac):
  • 2.4 GHz and 5 GHz concurrent bands
  • Typical combined throughput up to ~1200 Mbps (AC1200)
  • 2×2 MIMO with external antennas for improved coverage
  • Multiple SSIDs supported

Wireless & Antenna Specs

• Wi-Fi Standards: IEEE 802.11b/g/n/ac
• 2.4 GHz band: 2.400–2.4835 GHz
• 5 GHz band: 5.150–5.825 GHz
• Antenna(s): Dual-band external antennas (typically ~5 dBi each)
• Wireless Features: EasyMesh support, MU-MIMO, multiple SSIDs, standard security (WPA/WPA2-PSK)

 Software / Protocol Support

XPON & PON OAM

• OMCI/OAM support for remote provisioning and management from the OLT
• Automatic detection of GPON or EPON mode

Network & Routing Features

• Bridge, router, or mixed operating modes
• IPv4 & IPv6 dual stack
• NAT, DHCP client/server, PPPoE, static IP support
• QoS with multiple queues, SP/WRR scheduling, 802.1p & DSCP prioritization

VLAN & Multicast

• VLAN tagging/trunk/translation modes
• IGMP v1/v2/v3 snooping/proxy, MLD snooping/proxy

Security & Access Controls

• Firewall / ACL filtering
• MAC or URL-based filtering
• Wireless security (WPA/WPA2-PSK)

☎️ VoIP Capabilities

• SIP protocol support (IMS compatible)
• Voice codecs: G.711, G.722, G.729 (auto-negotiation)
• Echo cancellation (ITU-T G.165/G.168)
• Fax modes including T.38, relay methods (RFC2833)
• Typical calling features: Caller ID, call waiting, call forward, conference, etc.

  Power & Physical

  • Power supply: External DC adapter (typically 12 V, 1.0–1.5 A)
  • Power consumption: ~≤ 10 W
  • Weight: ~0.30–0.32 kg
  • Operating temperature: ~0 °C to +55 °C

  Typical Use Cases

  • FTTH broadband access with GPON or EPON OLTs
  • Triple-play services: Internet, IPTV, and VoIP voice
  • SOHO/home gateway with dual-band Wi-Fi and multiple services
  • Easy network management via TR-069, OMCI, Web/CLI interfaces
