XPON ONT 1GE+1FE+VOIP
₹700.00
Product Overview OPTIVISION Model no. : OV-VXP-999 1GE + 1FE + VoIP XPON ONU is a fiber-to-the-home (FTTH) customer-premises device that supports XPON dual-mode operation (GPON & EPON). It delivers high-speed data services and VoIP voice services over a single optical fiber, making it ideal for residential and SOHO deployments.
1. Product Overview OPTIVISION Model no. : OV-VXP-999 1GE + 1FE + VoIP XPON ONU is a fiber-to-the-home (FTTH) customer-premises device that supports XPON dual-mode operation (GPON & EPON). It delivers high-speed data services and VoIP voice services over a single optical fiber, making it ideal for residential and SOHO deployments.
2. PON Interface
- PON Type:Â XPON (Auto-adaptive GPON / EPON)
- GPON Standard:Â ITU-T G.984.x
- EPON Standard:Â IEEE 802.3ah
- Downstream / Upstream Rate:
- Down : EPON: 1.25 Gbps / GPON: 2.488 Gbps
- Up : EPON : 1.25 Gbps / GPON 1.25Gbps
- Optical Connector:Â SC/UPC
- Fiber Type: Single-mode fiber (SMF), 9/125 µm
- Optical Wavelengths:
- TX: 1310 nm / RX: 1490nm
- Optical Transmit Power:Â 0 ~ +4 dBm
- Receiver Sensitivity: ≤ –28 dBm
- Maximum Transmission Distance:Â Up to 20 km

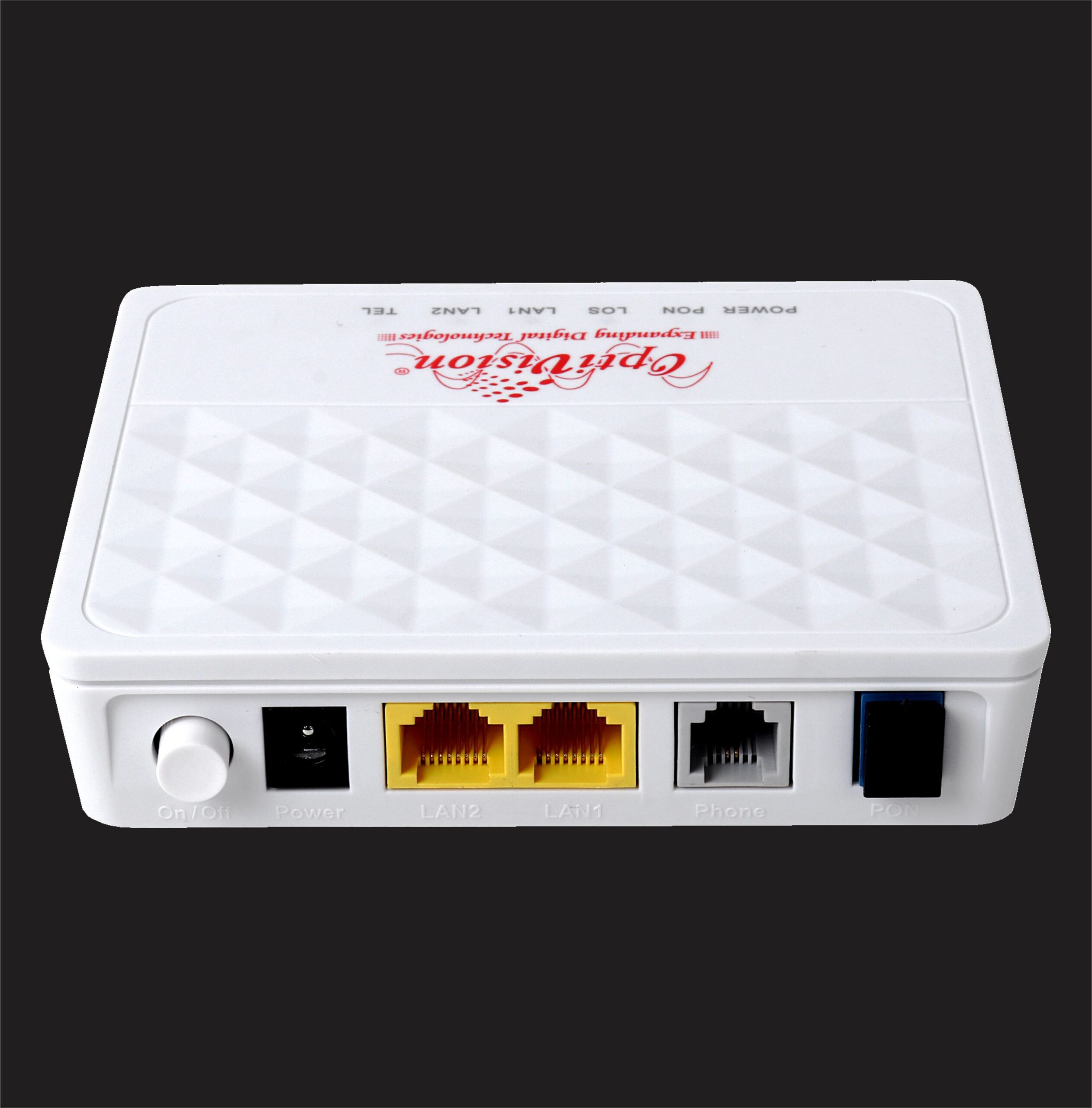

3. User Interfaces Ethernet Ports
- 1 × GE (10/100/1000 Mbps) RJ45 + 1 x FE (10/100 Mbps ) RJ45
Voice Interface
- 1 × FXS (RJ11) VoIP Port
- Voice Protocol:Â SIP (RFC compliant)
- Voice Features:
- Caller ID
- Call waiting / call forwarding
- Echo cancellation (G.165/G.168)
- DTMF (RFC2833 / SIP INFO)
4. Network & Software Features
- XPON Auto-Detection:Â Automatic GPON / EPON switching
- Operating Modes:Â Bridge / Router
- WAN Features:Â PPPoE, DHCP Client, Static IP
- LAN Features:Â DHCP Server, NAT, Port Forwarding
- IP Support:Â IPv4 / IPv6 Dual Stack
- VLAN:Â 802.1Q VLAN, VLAN translation
- QoS:Â Traffic shaping, rate limiting, priority queues (802.1p / DSCP)
- Multicast:Â IGMP v1/v2/v3 Snooping & Proxy (IPTV support)
5. Management & Provisioning
- Management Methods:
- OMCI (GPON) / OAM / TR-069 / Web GUI
- Remote Management:Â Supported via OLT/ACS
- Firmware Upgrade:Â Remote & local upgrade supported
6. Security Features
- Firewall protection
- MAC address filtering
- Port isolation
- DoS attack prevention
- Password-protected management access
7. Power & Indicators
- Power Supply: External DC adapter (12 V / 1–1.5 A)

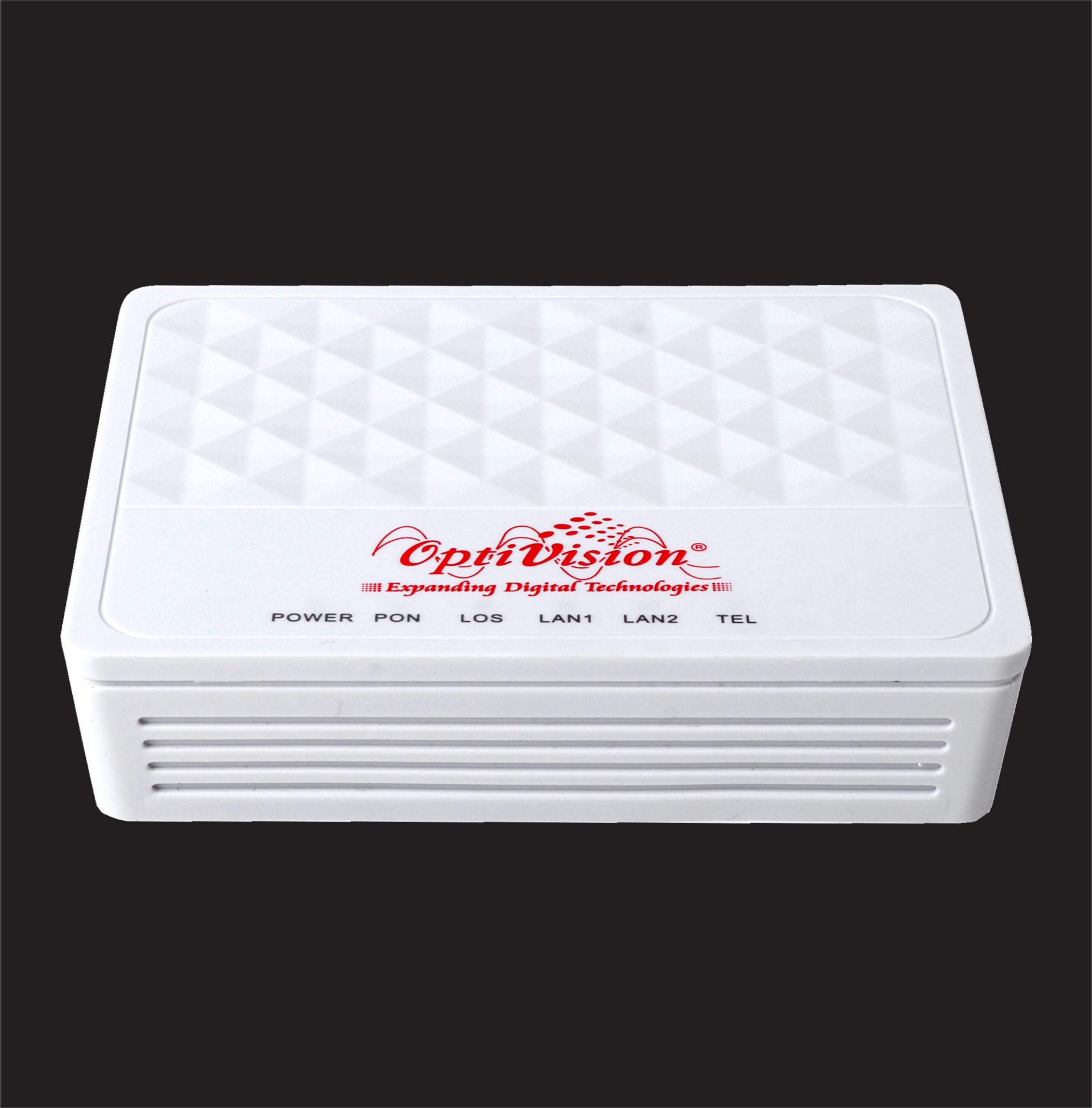

- LED Indicators:
- Power / PON / LOS / LAN / TEL
8. Environmental Specifications
- Operating Temperature: –5 °C to +55 °C
- Storage Temperature: –40 °C to +70 °C
- Operating Humidity: 5 % – 95 % (non-condensing)
9. Physical Specifications
- Dimensions: Compact desktop design (approx. 160 × 120 × 30 mm)
- Weight:Â ~300 g
- Installation:Â Desktop / wall-mount
10. Typical Applications
- FTTH broadband Internet access
- Residential VoIP voice services
- ISP triple-play deployments (Data + Voice)
- Small office / home office (SOHO) networks
